Power Supply Architecture: Adapting ASICs for 110V US and 220V EU Standards

1. The Global Distribution Bottleneck: Grid Discrepancies in Hardware Node Logistics

For institutional hardware distributors, STEM laboratory directors, and micro-datacenter operators, power supply compatibility is the single highest operational risk in international logistics. Secondary market distributors often struggle with high Return Merchandise Authorization (RMA) rates caused by single-voltage hardware failures when units built for 220V grids are connected to 110V circuits, or vice versa.

The global electrical landscape is split between two primary alternating current (AC) distribution paradigms:

1. Low-Voltage / High-Frequency Standard (110V–120V @ 60Hz): Standard in North America, parts of South America, and Japan (100V). Because power (P) is the product of voltage (V), current (I), and power factor (PF), operating a hashing node at 110V requires twice the input current of a 220V line to deliver identical wattage (I = P / V). This introduces elevated thermal loads on AC-side traces and plug contacts.
2. High-Voltage / Low-Frequency Standard (220V–240V @ 50Hz): Standard across the European Union, the United Kingdom, Australia, the Middle East, and mainland China. While lower amperage simplifies AC delivery, it demands higher dielectric insulation and transient overvoltage protection against grid spikes.

DigLucky’s universal power supply architecture completely eliminates regional hardware SKUs, enabling global distributors to procure a single master inventory that serves every sovereign jurisdiction without field modifications.

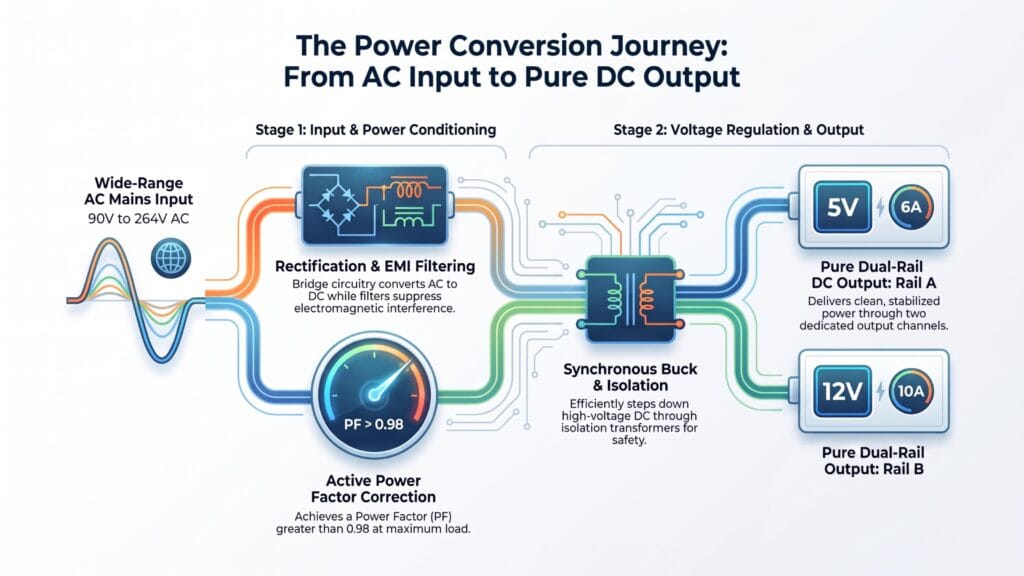

2. SMPS Engineering Deep Dive: 90V–264V AC to Low-Voltage DC Rails

DigLucky desktop ASIC miners—including the single-chip Bitaxe Gamma 601/602 series, the quad-chip NerdQAxe++ 6T, the 8-chip NerdOCTaxe Plus 12T, and the commercial LuckyMiner LV07/LV08 Pro series—utilize custom industrial-grade Switched-Mode Power Supplies (SMPS).

Active Power Factor Correction (PFC)

Standard commercial power bricks utilize cheap passive filtering that degrades power factor efficiency to≤0.70 when stepped down from 220V to 110V. DigLucky integrates two-stage Active PFC controllers that actively align current waveform phase angles with input voltage waveforms. This maintains PF ge 0.96$ at 110V full load and PF 0.98$ at 230V full load, meeting EN 61000-3-2 harmonic compliance standards.

Primary-to-Secondary LLC Resonant Topologies

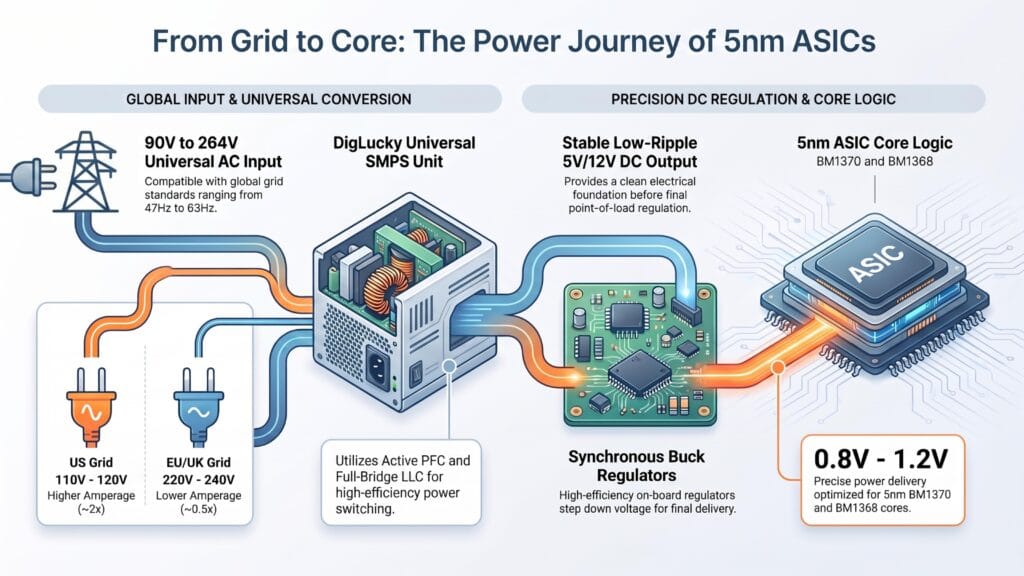

To power ultra-dense 5nm BM1370 and BM1368 ASIC cores, the conversion from high-voltage DC down to intermediate rails (5V DC for Gamma architectures; 12V DC via 5.5×2.1mm DC barrel or XT60/GPU 6-pin interfaces for multi-ASIC arrays) uses zero-voltage switching (ZVS) LLC resonant converters.

• Voltage Ripple Suppression: Peak-to-peak voltage ripple is held strictly below $\le 50\text{ mV}$ under full computational load. This prevents transient under-voltage lockouts (UVLO) on the ASIC core phase lines.
• Thermal Dissipation: Conversion efficiency reaches up to 92% under 230V input and 89.5% under 115V input, minimizing ambient thermal load within compact deployment environments.

Downstream Point-of-Load (PoL) Multi-Stage Buck Regulation

Once 5V or 12V DC enters the miner PCB, proprietary Texas Instruments and Monolithic Power Systems (MPS) digital multi-phase synchronous buck controllers down-convert intermediate voltage to the core operational window ($0.8\text{V} – 1.2\text{V}$) required by Bitmain ASIC silicon. Real-time telemetry monitored via AxeOS and dedicated INA260 sensors ensures sub-millivolt accuracy, dynamically compensating for temperature-induced rail resistance changes.

3. DigLucky Factory Engineering vs. Trader Middleman Risks

Sourcing crypto mining hardware through trading companies or unverified marketplace brokers introduces hidden power delivery compromises that jeopardize enterprise deployments.

4. Enterprise Hardware & Power Delivery Matrix

The following matrix details the electrical specifications, power supply architectures, and wholesale packaging configurations across DigLucky’s enterprise desktop ASIC hardware lineup.

5. Step-by-Step SOP: Global Mains Pre-Configuration & Testing Protocol

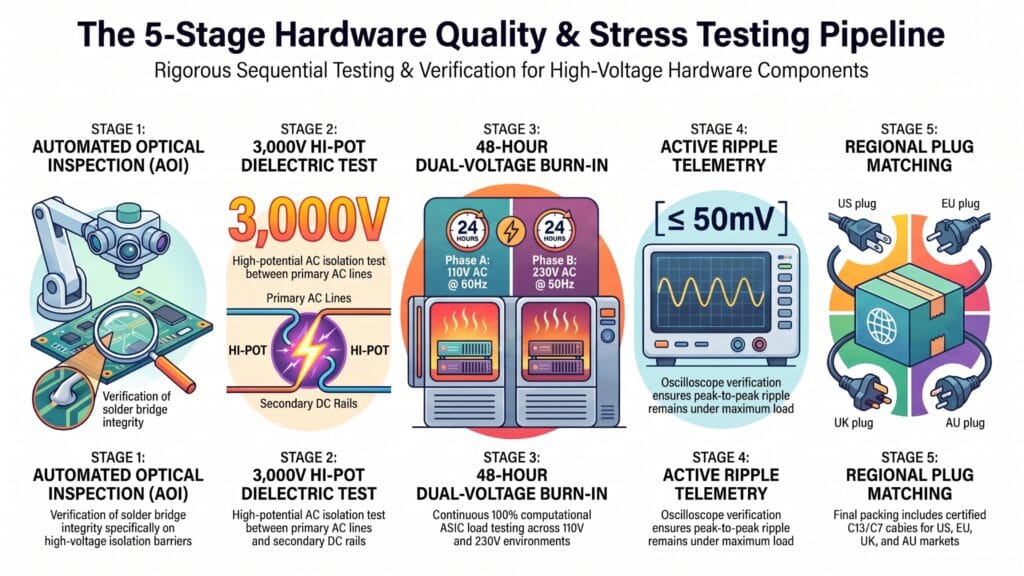

To ensure a Zero-DOA (Dead On Arrival) rate across international distribution channels, DigLucky implements a strict 5-stage power quality assurance Standard Operating Procedure at its Shenzhen manufacturing center.

Stage 1: Automated Optical Inspection (AOI) of Primary Circuitry

Every SMPS PCBA passes 3D AOI to ensure proper creepage distances ($\ge 6.4\text{ mm}$) and clearance gaps between primary AC high-voltage traces and secondary low-voltage DC planes in accordance with IEC 62368-1 safety standards.

Stage 2: High-Potential (Hi-Pot) Dielectric Isolation Testing

Technicians apply 3,000V AC for 60 seconds across primary input terminals and secondary output leads to test insulation breakdown limits. Leakage current thresholds are held strictly below $2.0\text{ mA}$.

Stage 3: Dual-Voltage 48-Hour Burn-In Stress Cycle

All units are placed in environmental test chambers maintained at 40°C ambient room temperature:

• 0–24 Hours: Operated continuously at 110V AC @ 60Hz. ASIC frequency, hashrate stability, and core junction temperatures are logged via automated scripts.
• 24–48 Hours: Switched dynamically to 230V AC @ 50Hz to stress PFC circuitry, internal switching FETs, and step-down synchronous rectifiers.

Stage 4: Transient Load & Inrush Current Validation

Power supplies undergo rapid cold-start boot sequencing. Automated oscilloscopes measure inrush current, confirming the Negative Temperature Coefficient (NTC) thermistors suppress inrush currents below $30\text{ A}$ to prevent tripping standard residential or office circuit breakers (B10/B16 breakers).

Stage 5: Regional Cable Assignment and Master Carton Boxing

Based on the client’s Proforma Invoice (PI) specifications, high-purity oxygen-free copper power cables (18AWG for US NEMA 5-15P; $0.75\text{ mm}^2$ to $1.0\text{ mm}^2$ for EU Schuko, UK BS 1363, and AU AS 3112) are inspected, bound, and packed alongside the hardware in reinforced 5-ply double-wall corrugated Master Cartons.

6. Regulatory Compliance & Regional Grid Safety

Procuring mining hardware without legitimate compliance certificates exposes corporate distributors to customs confiscation, port audits, and municipal electrical liability. DigLucky engineers all power architectures to satisfy stringent international testing standards.

• Electromagnetic Compatibility (EMC): Heavy common-mode choke coils and Class-X/Class-Y suppression capacitors eliminate high-frequency switching noise, preventing EMI leakage back onto building wiring or wireless communications (FCC Part 15 Class B compliant).
• Thermal Overload & Short-Circuit Protection: SMPS architectures feature auto-recovery Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) shutting down DC output when internal power supply thermistors exceed 85°C.
