Overclocking the Bitaxe Gamma 601: Pushing to 1.5 TH/s Safely

The 1.5 TH/s Barrier

In the world of open-source ASIC mining, the Bitaxe Gamma (powered by the BM1366 silicon) has been a revelation. For most of 2025, the community was happy with a stable 500-600 GH/s. It was efficient, quiet, and perfect for the desk.

But at DigLucky, “standard” is just a starting point.

With the release of our Bitaxe 601 PLUS, we have successfully normalized a production hashrate of 1.5 TH/s. This isn’t a “golden sample” fluke; it’s a reproducible, mass-manufactured specification.

How did we get here? And more importantly, how can you attempt to push your standard units closer to this mark without releasing the magic blue smoke? Let’s dive into the voltage, thermals, and firmware tweaks required to tame this beast.

The Triad of Stability: Voltage, Frequency, Thermal Mass

To jump from the stock ~500 GH/s to 1.5 TH/s, you aren’t just “turning up a dial.” You are fundamentally changing the operating environment of the ASIC.

1. The Voltage Curve (The Danger Zone)

The BM1366 is remarkably elastic, but it is thirsty.

• Stock: Typically runs around 1.2V – 1.3V for standard efficiency.
• The 1.5T Target: You need to push Core Voltage (VDD) closer to 1.45V – 1.52V.

WARNING: At >1.4V, the VRM (Voltage Regulator Module) on standard open-source reference boards begins to scream.

• DigLucky Solution: On the 601 PLUS, we didn’t just crank the software voltage. We upgraded the onboard buck converters and added higher-rating capacitors to clean up the ripple current. If you are using a standard DIY kit, ensure your power supply can deliver a clean 5V/6A minimum. Voltage droop under load is the #1 cause of instability at these hashrates.

2. Frequency Tuning (The Sweet Spot)

Hashrate is linear to frequency, but heat is exponential to voltage. To hit 1.5 TH/s, you are looking for a Global Frequency target of roughly 625 MHz – 650 MHz (depending on your specific hardware variance and silicon binning).

Recommended Tuning Steps (AxeOS):

1. Baseline: Start at 1.3V / 500 MHz. Verify stability (1 hour).
2. The Climb: Increase Frequency by 25 MHz increments.
3. The Feed: When hardware errors (HW) spike >0.1%, bump Voltage by 0.02V.
4. The Wall: Around 1.3 TH/s, you will hit a thermal wall. This is where 90% of DIY builds fail.

3. Thermal Management (The Killer)

A standard 40mm fan cannot dissipate the heat generated at 1.5 TH/s (approx 25-30W localized on a tiny die).

• Symptom: The chip hits 75°C+, initiates thermal throttling, and the hashrate creates a “sawtooth” pattern on your graph.
• The Fix: You need high-static pressure.
  • DIY Hack: Swap the stock fan for a server-grade 4028 or 60mm fan adapter.

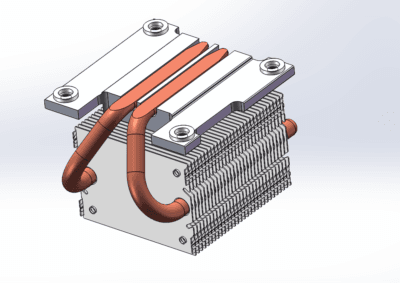

  • DigLucky Factory Spec: The 601 PLUS uses a custom-molded aluminum alloy heatsink with 30% more surface area and a factory-tuned high-RPM fan that moves 12 CFM. We effectively brute-force the heat away from the core.

Why “Factory Tuned” Matters (B2B Insight)

This is where the difference between “Open Source Schematic” and “Industrial Manufacturing” becomes clear.

A hobbyist can overclock one Bitaxe to 1.5 TH/s by spending 5 hours tweaking settings and swapping fans. DigLucky produces thousands of them, pre-validated.

For our Bitaxe 601 PLUS, we implement a process called Binning & Burning:

1. Binning: We analyze the ASIC quality before assembly. Only “Grade A” chips capable of high frequency at lower voltages go into the PLUS line.
2. VRM Reinforcement: We use industrial-grade inductors that handle the thermal soak of 24/7 overclocking.
3. Bios Locking: We ship with a custom AxeOS profile pre-loaded, defined by the specific thermal characteristics of our heatsink.

The Result: You plug it in. It hits 1.5 TH/s. It stays there.

Conclusion: Build or Buy?

If you are a tinkerer who loves the smell of solder and the thrill of the crash, grab a standard Bitaxe Gamma kit and start pushing those volts. It’s the best way to learn the physics of Bitcoin mining.

But if you want density—if you want to pack 15 TH/s into a small shelf space without managing a fire hazard—the engineered solution is ready.
